Boxcar Averager SR280 ... from $2000
SR280 NIM mainframe & display
(Click to enlarge)

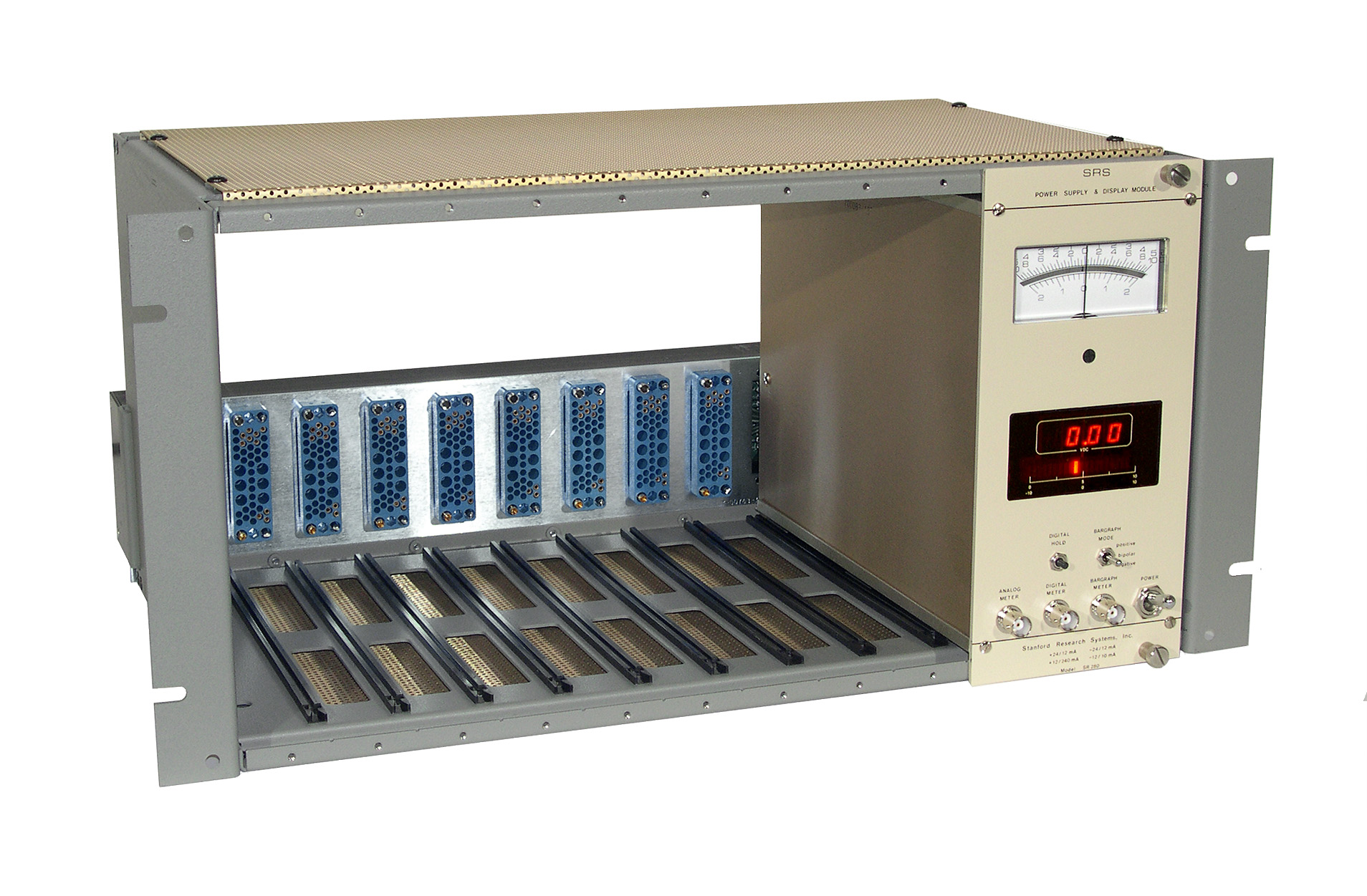

SR280 Boxcar Mainframe
  • NIM compatible mainframe
  • 9 available slots
  • Analog, digital and bar graph meters

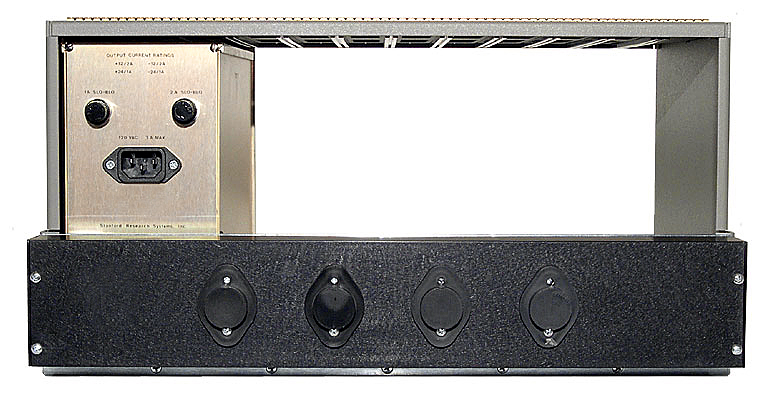

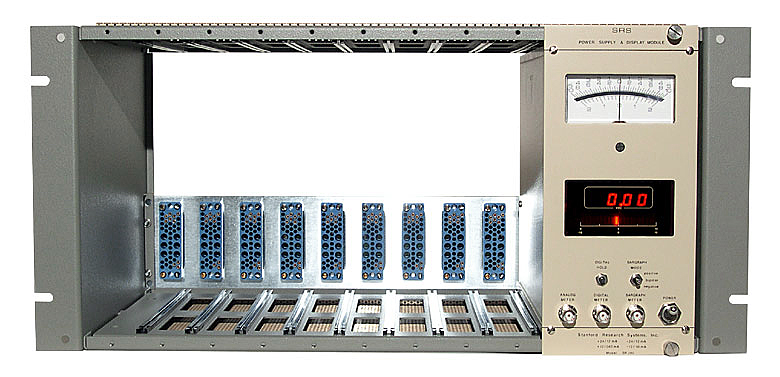

The SR280 is the Boxcar Averager System mainframe. The mainframe is NIM (Nuclear Instrumentation Module) compatible and has twelve slots. The three right-most slots are filled by the display module and unregulated power supplies, leaving nine slots for other NIM modules. The DC power supply regulators are mounted on a heat sink on the rear of the mainframe.
   Related Products

> SR200 Series Boxcar Systems
> DG645 Delay Generator
> DG535 Delay Generator
Downloads

Datasheet
User's Manual
Prices

SR280 Boxcar Mainframe

The SR280 is the Boxcar Averager System mainframe. The mainframe is NIM (Nuclear Instrumentation Module) compatible and has twelve slots. The three right-most slots are filled by the display module and unregulated power supplies, leaving nine slots for other NIM modules. The DC power supply regulators are mounted on a heat sink on the rear of the mainframe.

The display module features three types of meters. The analog meter is for "peaking-up" an experimental signal. The digital voltmeter provides a numeric readout. The "Digital Hold" button may be used to hold the digital meter’s reading. A 20-segment bar graph display may be used to show rapidly changing data.





Phone: (408)744-9040 • Fax: (408)744-9049 • email: info@thinkSRS.comwww.thinkSRS.com

SR280 Boxcar Mainframe
Analog Meter
Accuracy 2 % accuracy
Range ±10 VDC
Digital meter
Accuracy 0.25 %
Range ±10 VDC
Resolution 3½-digit
Bar graph
Accuracy 2 %
Display 20-segment
Bandwidth 50 kHz
Range 0 to 10 V, ±10 V, -10 to 0 V
General
Power mains 115 or 230 VAC, 50/60 Hz (set at factory)
Mechanical NIM-compatible, nine available slots
Dimensions 16.875" × 8.714" × 13.0" (WHL)
DC power 12 VDC at 2 A
±24 VDC at 1 A
120 VAC is wired to each slot
Warranty One year parts and labor on defects in materials and workmanship
