RF Signal Generators
SG380 Series Signal generators to 6 GHz

SG380 Series ... from $3900
×

SG380 RF Signal Generator

Front Panel

×

SG380 RF Signal Generator

Rear Panel

(Click to enlarge)
  • DC to 2 GHz, 4 GHz or 6 GHz
  • 1 µHz resolution
  • AM, FM, ØM, PM and sweeps
  • OCXO timebase (std.)
  • -116 dBc/Hz phase noise
         (20 kHz offset, f = 1 GHz)
  • Rubidium timebase
  • Square wave clock outputs
  • Analog I/Q inputs
  • Ethernet, GPIB and RS-232
  • Overview
    The SG380 Series RF Signal Generators use a unique, innovative architecture (Rational Approximation Frequency Synthesis) to deliver ultra-high frequency resolution (1 µHz), excellent phase noise, and versatile modulation capabilities (AM, FM, ØM, pulse modulation and sweeps) at a fraction of the cost of competing designs. The standard models produce sine waves from DC to 2.025 GHz (SG382), 4.05 GHz (SG384) and 6.075 GHz (SG386).
    Quick Links
    Buy Online   Get a Quote

    SG380 Series RF Signal Generators

    Introducing the new SG380 Series RF Signal Generators — finally, high performance, affordable RF sources.

    The SG380 Series RF Signal Generators use a unique, innovative architecture (Rational Approximation Frequency Synthesis) to deliver ultra-high frequency resolution (1 µHz), excellent phase noise, and versatile modulation capabilities (AM, FM, ØM, pulse modulation and sweeps) at a fraction of the cost of competing designs.

    The standard models produce sine waves from DC to 2.025 GHz (SG382), 4.05 GHz (SG384) and 6.075 GHz (SG386). There is an optional frequency doubler (Opt. 02) that extends the frequency range of the SG384 and SG386 to 8.10 GHz. Low-jitter differential clock outputs (Opt. 01) are available, and an external I/Q modulation input (Opt. 03) is also offered. For demanding applications, the SG380 Series can be ordered with a rubidium timebase (Opt. 04).

    On the Front Panel

    Phase Noise

    ×

    SG380 Series RF Signal Generators

    Phase Noise

    AM

    ×

    SG380 Series RF Signal Generators

    Amplitude Modulation

    The SG380 Series Signal Generators have two front-panel outputs with overlapping frequency ranges. A BNC provides outputs from DC to 62.5 MHz with adjustable offsets and amplitudes from 1 mV to 1 Vrms into a 50 Ω load. An N-type output sources frequencies from 950 kHz to 4.05 GHz with power from +16.5 dBm to -110 dBm (amplitude from 1 Vrms to 0.707 µVrms) into a 50 Ω load.

    Modulation

    The SG380 Signal Generators offer a wide variety of modulation capabilities. Modes include amplitude modulation (AM), frequency modulation (FM), phase modulation (ΦM), and pulse modulation. There is an internal modulation source as well as an external modulation input. The internal modulation source produces sine, ramp, saw, square, and noise waveforms. An external modulation signal may be applied to the rear-panel modulation input. The internal modulation generator is available as an output on the rear panel.

    Unlike traditional analog signal generators, the SG380 Series can sweep continuously from DC to 62.5 MHz. And for frequencies above 62.5 MHz, each sweep range covers more than an octave.

    FM

    ×

    SG380 Series RF Signal Generators

    Frequency Modulation

    1 GHz Spectra

    ×

    SG380 Series RF Signal Generators

    1 GHz Spectra

    OCXO or Rubidium Timebase

    The SG380 Series come with a oven-controlled crystal oscillator (OCXO) timebase. The timebase uses a third-overtone stress-compensated 10 MHz resonator in a thermostatically controlled oven. The timebase provides very low phase noise and very low aging. An optional rubidium oscillator (Opt. 04) may be ordered to substantially reduce frequency aging and improve temperature stability.

    The internal 10 MHz timebase (either the standard OCXO or the optional rubidium reference) is available on a rear-panel output. An external 10 MHz timebase reference may be supplied to the rear-panel timebase input.

    Square Wave Clock Outputs

    Optional differential clock outputs (Opt. 01) are available on the rear-panel that make the SG384 a precision clock generator in addition to a signal generator. Transition times are typically 35 ps, and both the offset and amplitudes of the clock outputs can be adjusted for compliance with PECL, ECL, RSECL, LVDS, CML, and NIM levels.

    FSK

    ×

    SG380 Series RF Signal Generators

    Frequency Shift Keying

    PM

    ×

    SG380 Series RF Signal Generators

    Pulse Modulation

     I/Q Inputs

    Optional I/Q inputs (Opt. 03) allow I & Q baseband signals to modulate carriers from 400 MHz to 4.05 GHz. This option also allows the I/Q modulator to be driven by an internal noise generator with adjustable amplitude and bandwidth. Rear-panel outputs allow the noise source to viewed or used for other purposes.

    Output Frequency Doubler

    The SG384 and SG386 can be ordered with a frequency doubler (Opt. 02) that extends the frequency range to 8.10 GHz. The amplitude of the rear-panel RF output can be adjusted from –10 dBm to +13 dBm. This option also comes with a bias source output which can be set with 5 mV resolution over ±10 VDC.

    Easy Communication

    Remote operation is supported with GPIB, RS-232 and Ethernet interfaces. All instrument functions can be controlled and read over any of the interfaces. Up to nine instrument configurations can be saved in non-volatile memory.

    A New Frequency Synthesis Technique

    The SG380 Series Signal Generators are based on a new frequency synthesis technique called Rational Approximation Frequency Synthesis (RAFS). RAFS uses small integer divisors in a conventional phase-locked loop (PLL) to synthesize a frequency that would be close to the desired frequency (typically within ±100 ppm) using the nominal PLL reference frequency. The PLL reference frequency, which is sourced by a voltage control crystal oscillator that is phase locked to a dithered direct digital synthesizer, is adjusted so that the PLL generates the exact frequency. Doing so provides a high phase comparison frequency (typically 25 MHz) yielding low phase noise while moving the PLL reference spurs far from the carrier where they can be easily removed. The end result is an agile RF source with low phase noise, essentially infinite frequency resolution, without the spurs of fractional-N synthesis or the cost of a YIG oscillator.

    Noise Spectra

    ×

    SG380 Series RF Signal Generators

    Noise Spectra

    I/Q Noise Modulation

    ×

    SG380 Series RF Signal Generators

    I/Q Noise Modulation

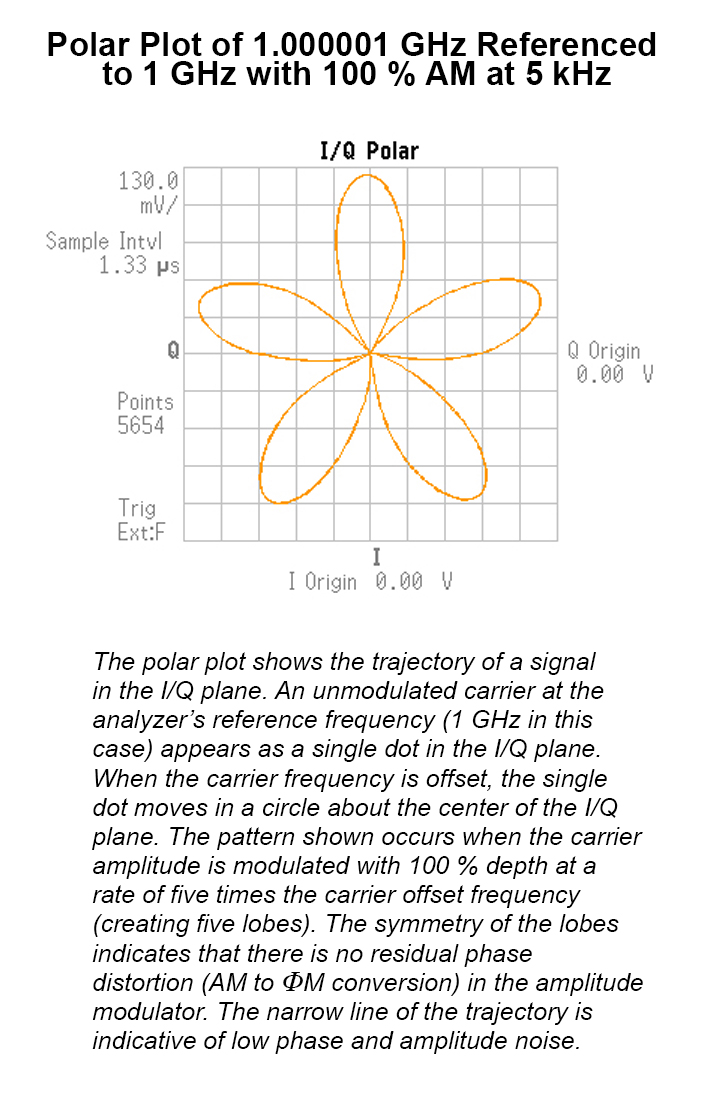

    Polar Plot 1

    ×

    SG380 Series RF Signal Generators

    Polar Plot 1

    Clock Outputs

    ×

    SG380 Series RF Signal Generators

    Clock Outputs

    Polar Plot 2

    ×

    SG380 Series RF Signal Generators

    Polar Plot 2
