RGA LabVIEW Development Kit

Introducing the RGA LabVIEW Development Kit consisting of a RGA LabVIEW Application example and all the LabVIEW drivers you need to create custom applications immediately.

RGA LabVIEW Application is a stand-alone software program for easy operation and control of all SRS RGAs from any Windows PC computer. RGA LabVIEW offers a very intuitive user interface and packs a powerful set of features which include analog scanning, single mass measurement, partial pressure vs. time display, leak testing (with audio feedback) and data logging capabilities. All acquired data can be stored in convenient spreadsheet compatible format for later review. RGA LabVIEW was entirely developed within the LabVIEW graphical programming environment, but operates as a stand-alone application that runs on any Windows PC. Owning a copy of LabVIEW is not required. Simply load the executable program into your computer and run it as you would with any other software. A free, fully-functional, downloadable version of RGA LabVIEW is available from the SRS website for evaluation; see Software Downloads.

RGA LabVIEW Development Kit is a complete set of fully-tested LabVIEW drivers specifically created to help LabVIEW programmers develop customized RGA applications without having to generate SRS RGA-specific VI diagrams. The Development Kit also includes the complete source code for the RGA LabVIEW Application, making it possible to modify the program to fit any user-specific application requirements. Following National Instrument's standards, the VIs in the set are divided into three hierarchical layers. See the hierarchical tree diagram below for a detailed description of the different VIs and VI below, demonstrate how the Development Kit VIs are used in custom applications. The entire kit can be downloaded directly from https://www.thinksrs.com/html/software.html.

The combination of the LabVIEW graphical programming platform with a LabVIEW Development Kit provides the fastest, most flexible, reliable and powerful path to develop customized gas analysis applications for SRS RGA users. Using the RGA Labview Development Kit, and with very little extra effort, a software developer can easily:

Product Specifications
Contents RGA Labview Application
RGA LabVIEW Development Kit. Includes source code.
RGA Products Supported RGA100/200/300, PPR100/200/300, and QMS 100/200/300.
Communications Interface RS-232
Communications Baud Rate 28,800 kbps
LabVIEW Requirement LabVIEW 5.1 minimum. LabVIEW 6i recommended.
Computer Requirements For Windows NT, use Windows NT 4.0 Service Pack 3 or later
32 MB RAM minimum, 64 MB recommended
170 MB RAM disk space for full LabVIEW installation*

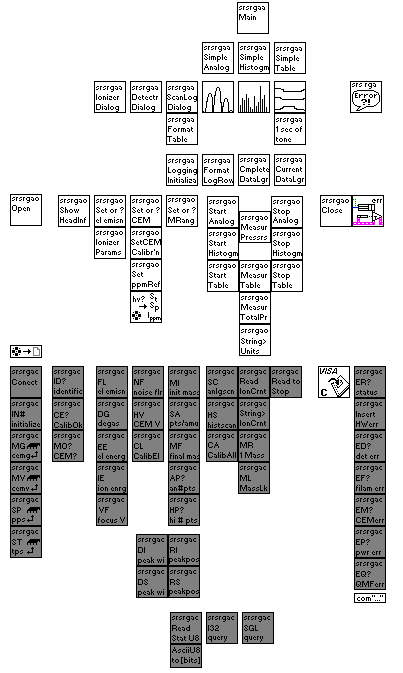

Hierarchical Tree Diagram







Applications Layer




Operations Layer








Communications Layer

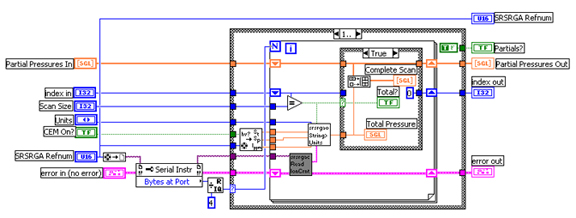

Example VI Measure Partial Pressures
